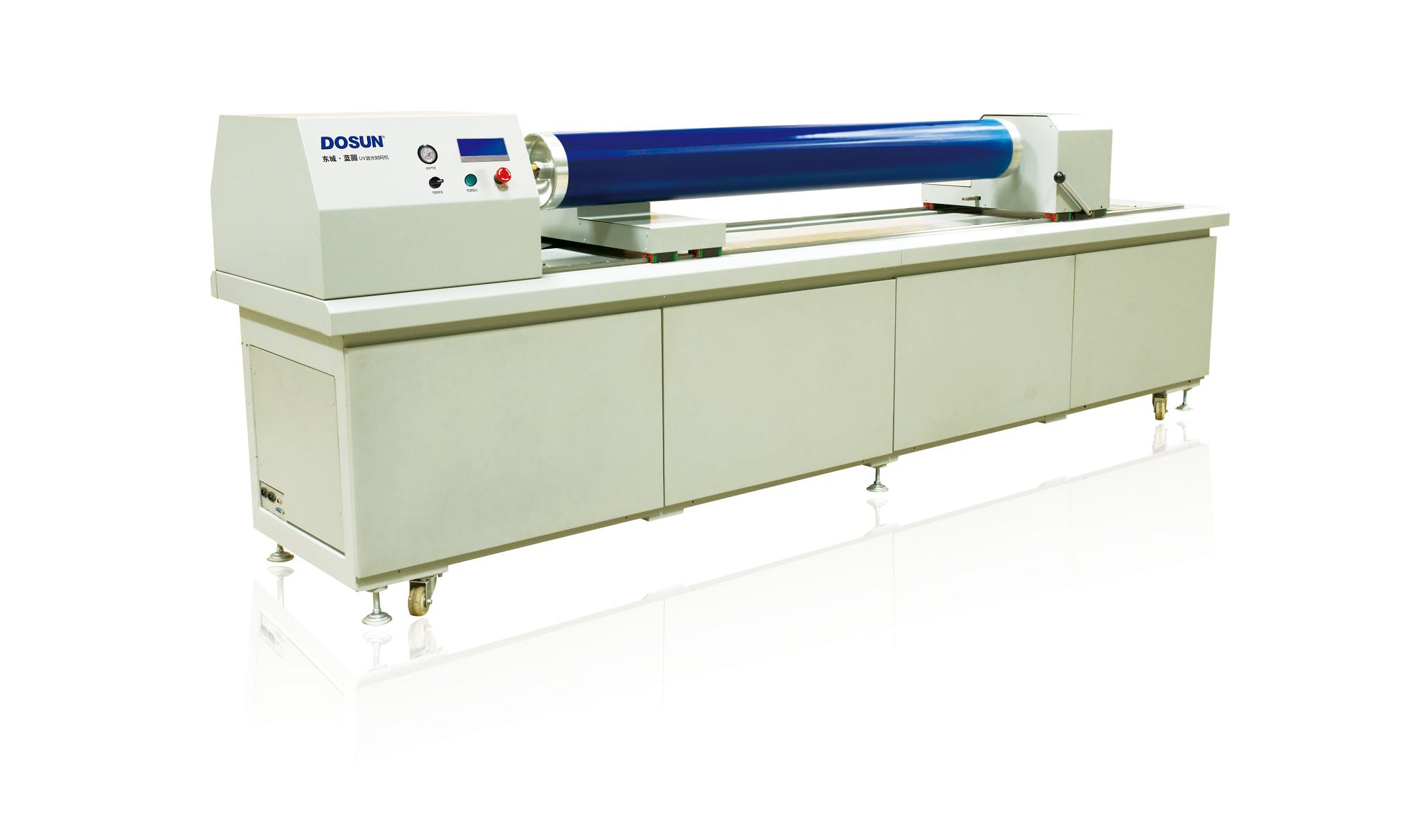

DOSUN blue-fina™ Laser Engine：Integrating several high technologies ,such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on ,in to one， it provides  revolutionary  power for finer screen engraving.



DOSUN engravine ™ Software ：After tens of edition upgrade in past decades, as a profound and professional synthesizer of engraving technology DOSUN  engravine™ Software not only belongs to DOSUN but also to the whole textile printing industry.



DOSUN perfekt™ Hardware Platform：Decades of engraver-manufacturing experience, hundreds of successful user′s case, thousands of vivid technical specific, loads more than perfectness.





Screen Engraving flow：

Coating—low-temperature oven—laseren graving—developing—testing—

high-temperature oven—end ring—end product





Specification



规格型号Model	BR2200  BR3500
圆网门幅Screen Breadth	2200mm  3500mm
圆网花回Screen Repeat	640mm（标配Standard） 820mm/914mm/1018mm（选配Optional）
图像分辨率Resolution	360/720dpi   （300/600dpi；254/508dpi可定制）
重复精度Repeated Accuracy	±0.02mm
成像光源Imaging Light Source	405nm激光二极管 LD
制网速度Engraving Speed	6～8min./m（花回640mm）
可读文件Acceptable File Format	BMP/TIFF
工作环境Ambient	温度Temperature：5～40℃ 相对湿度Humidity：30～80%(不结露Non-condensing) 照明Lighting：黄色光源Yellow light
设备供电Power	1.5KW/220V, 50Hz
设备外形尺寸Machine Dimension	3650mm×750mm×1220mm（BR2200） 4850mm×750mm×1220mm（BR3500）
设备净重Weight	900kg（BR2200） 1200kg（BR3500）
